Rigaku

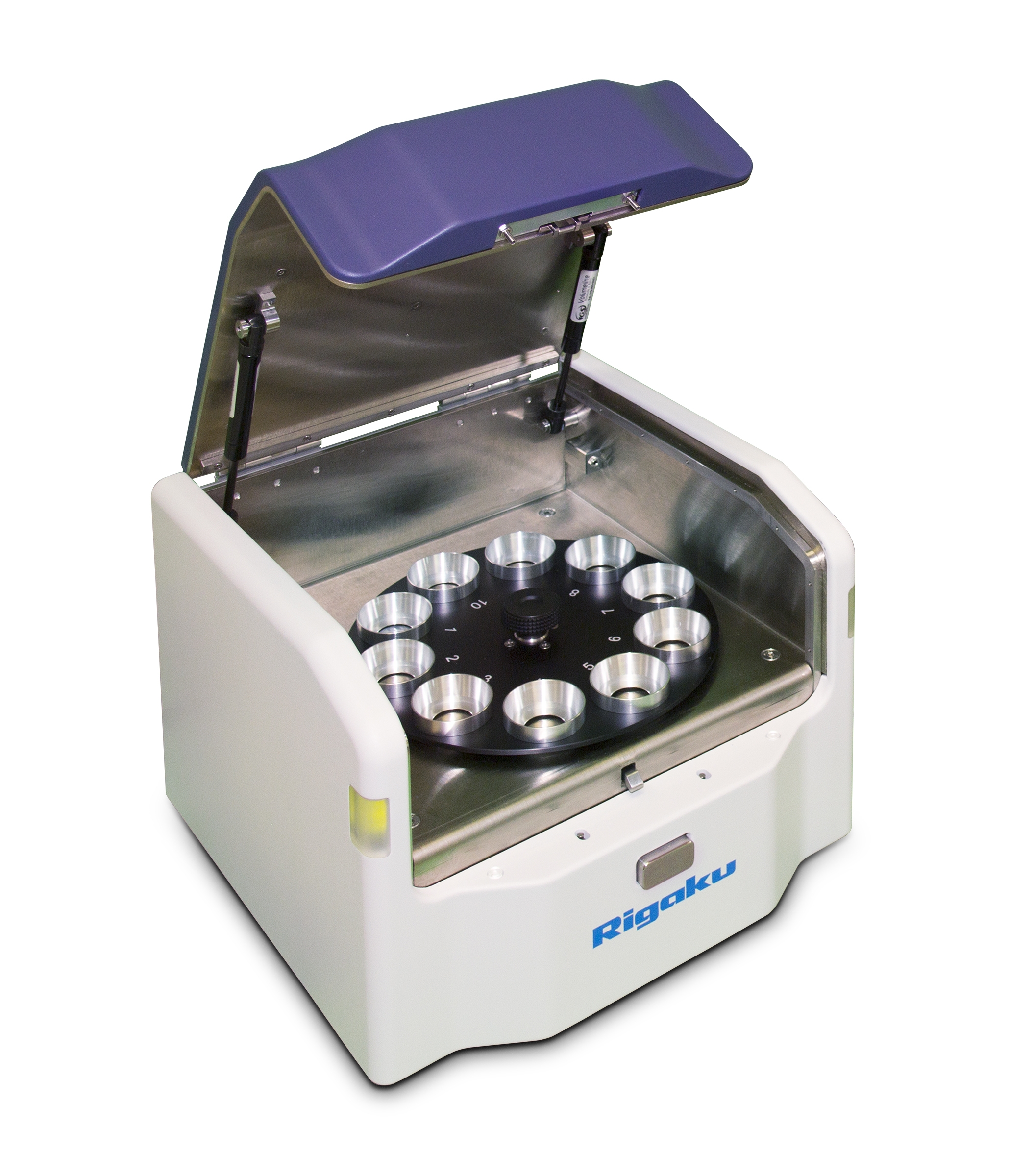

NEX DE VS EDXRF Spectrometer

manufacturer

PRODUCT OVERVIEW


As a premium high performance small spot benchtop EDXRF elemental analyzer, the new Rigaku NEX DE VS delivers wide elemental coverage with easy-to-learn Windows-based QuantEZ software. Non-destructively analyse from sodium through to uranium in almost any matrix, from solids and alloys to powders, liquids, slurries and RoHS materials.

This analyser offers multi-position bulk analysis in addition to a large single position sample stage, with three analysis spot size
options - 1 mm, 3 mm and 10 mm - that are easily changeable by the system's automatic collimators. A high resolution camera and LED lighting system allows a sample's image to be recorded via the Windows software interface.

The powerful 60kV X-ray tube and Peltier cooled FAST SDD® Silicon Drift Detector deliver exceptional short-term repeatability and long-term reproducibility with excellent element peak resolution. This high voltage capability (60 kV), along with high emission current and multiple automated X-ray tube filters, provides a wide range of XRF applications versatility and low limits-of-detection (LOD).

XRF options: autosampler, helium and standardless FP Options include fundamental parameters, a variety of automatic sample
changers, sample spinner and helium purge for enhanced light element sensitivity.



Make an Enquiry

KEY FEATURES

  • Analyze ₁₁Na to ₉₂U non-destructively
  • Powerful QuantEZ Windows-based    software
  • High resolution camera
  • 1, 3 or 10 mm analysis spot size
  • Solids, liquids, alloys, powders and films
  • 60kV X-ray tube for wide elemental coverage
  • FAST SDD detector for superior data
  • Six automated tube filters
  • Unmatched performance-to-price ratio
  • Optional RPF-SQX fundamental parameters

SPECIFICATIONS


Detection
High performance FAST SDD detector
Sample Chamber
Large 30.5 (W) X 30.5 (D) x 10.5 (H) cm chamber
Dimensions
35.6(W) X 35.1(D) X 26.0(H) cm
Weight
<27 kg (<60 lbs)
User Interface
QuantEZ software
Power
Single phase AC 100/220V, 1.5A (50/60 Hz)

NEX DE VS EDXRF Spectrometer
NEX DE VS EDXRF Spectrometer

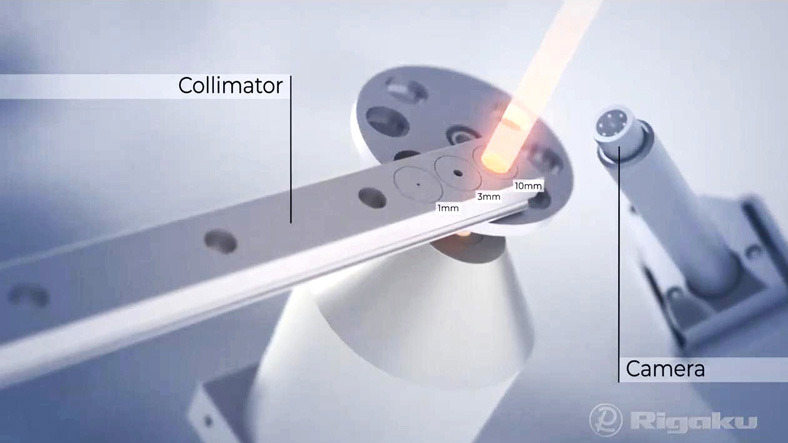

Variable spot size
Variable spot size

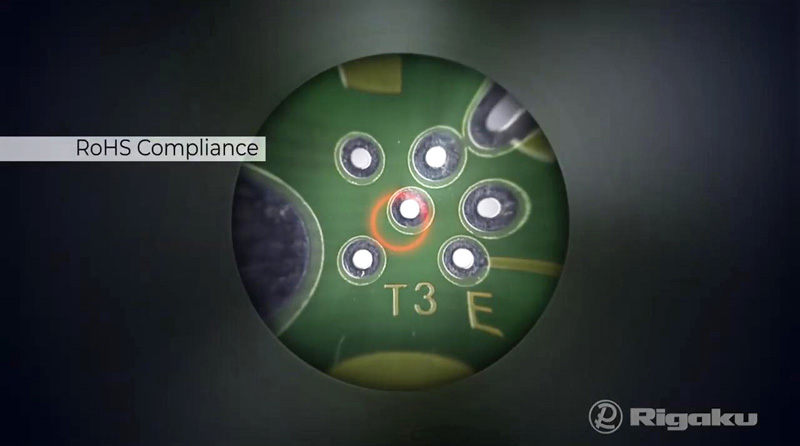

Hi-resolution camera
