Pt, Pd, Rh in Recycled Automotive Catalysts

The measurement of Pt, Rh & Pd in recycled automotive catalytic converters can be achieved by using the Fundamental Parameters program to reference a matching library of elemental profiles.

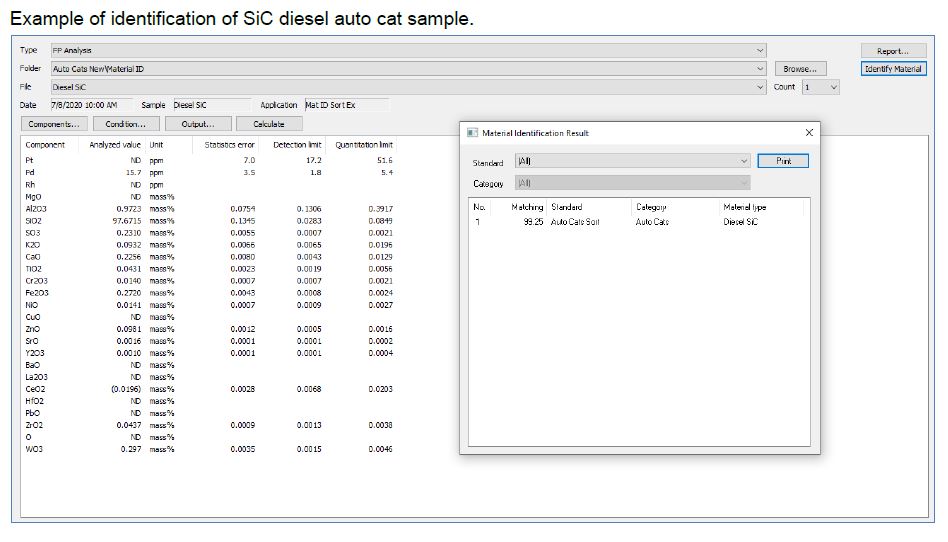

The full elemental analysis (up to 25 elements) is displayed and the Material Identification software, provides the user with a tool for PMI as well as the ability to create custom identification tables for material verification and sorting applications.

INSTRUMENTATION

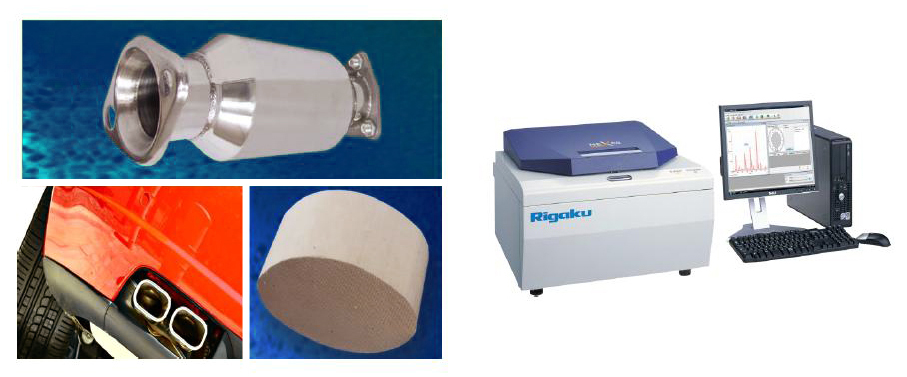

Model: Rigaku NEX CG

X-ray tube: 50 W Pd-anode

Excitation: Indirect with polarization

Detector: High performance SDD

Analysis Time: 200 seconds

Autosampler: 15-position

Environment: Air

Options: Manual Sample Press, 9-position Sample Spinner Tray
